UMC Collector ring

UMC Collector ring

Regular price €245,00 EUR
Regular price Sale price €245,00 EUR
Sale Sold out
Tax included.

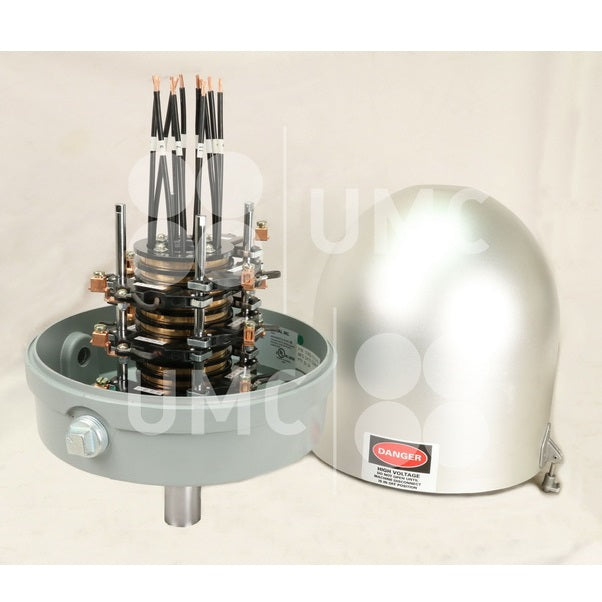

UMC®’s Collector Rings are made up of stationary brass rings with contact brushes that rotate around them. This assembly makes it possible to supply continuous power and signal voltage to the motors and controls of center pivot irrigation systems as the machine rotates around the pivot point.

  • Available styles: 13-ring
  • Available with an aluminum cover
  • Heavy duty die cast aluminum base
  • Specially designed cover clamps
  • Large copper brushes are 80% copper and 20% graphite for less resistance
  • Seamless ring to reduce brush wear
  • Wires are numbered for easy identification
  • Grease-able bearings in the base, stops shaft seizure
  • Individually packaged
  • Rated Voltage: 600 VAC
  • Rated Current: 30 AMPS All Rings
  • CSA and CE Certified
